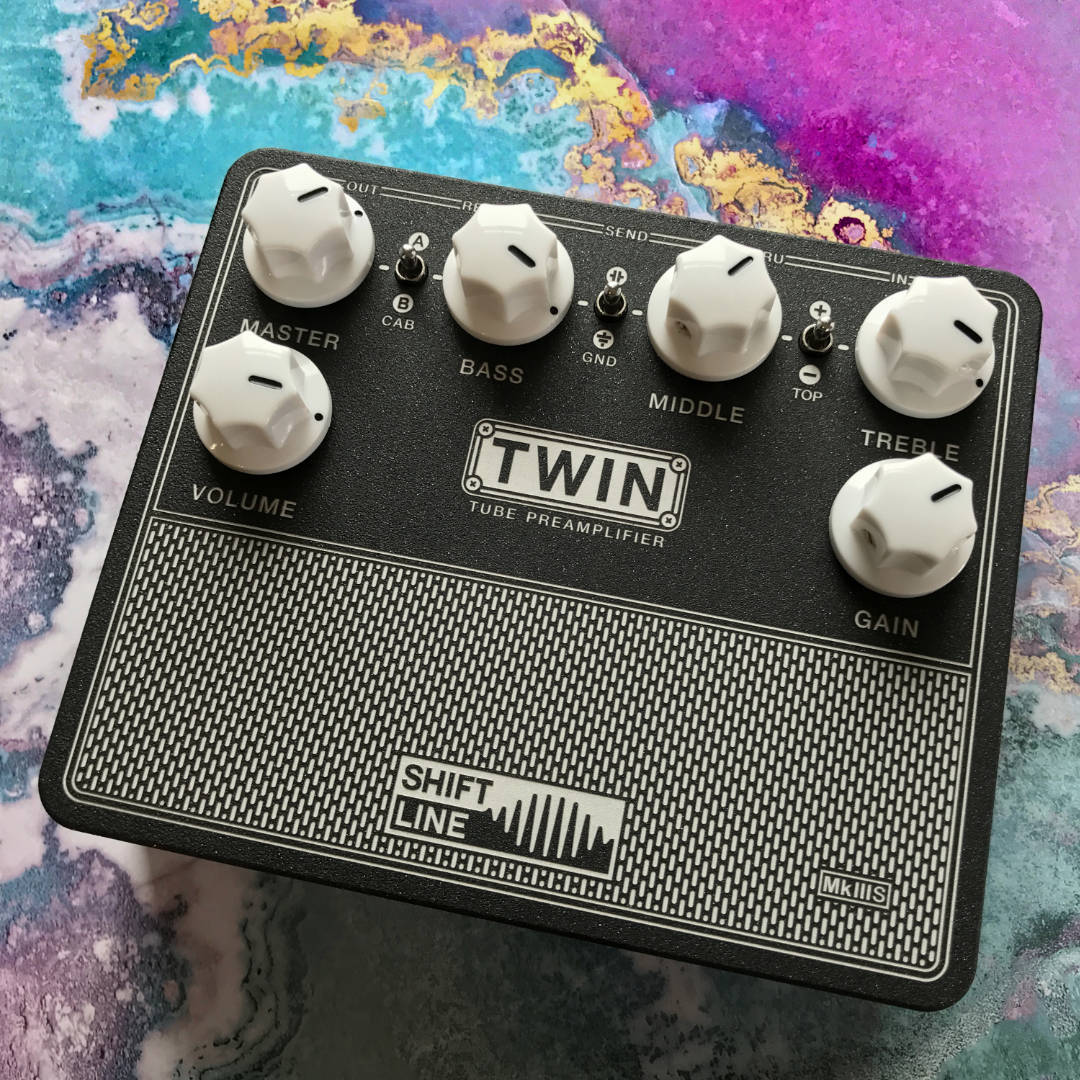

fender preamp pedal Shift Line Twin MkIIIS

fender preamp pedal Shift Line Twin MkIIISTax & Duty Free Fast Free Shipping Free Returns $489 is your absolute final total here for the Shift Line Twin MkIIIS, and its power supply is included. The Shift Line Twin MkIIIS is the 3rd version of this tube guitar preamplifier and cab simulator, which boasts a unique sound, universal connectivity, all in a compact black enclosure and design. The dynamic range has been expanded to achieve maximum gain. As a result, it can go from its renowned

Tax & Duty Free - Fast Free Shipping - Free Returns...
$489 is your absolute final/total here for the Shift Line Twin MkIIIS, and its power supply is included.

The Shift Line Twin MkIIIS is the 3rd version of this tube guitar preamplifier and cab simulator, which boasts a unique sound, universal connectivity, all in a compact black enclosure and design. The dynamic range has been expanded to achieve maximum gain. As a result, it can go from its renowned clean sound, into crunch and overdrive without external boosting. The Twin has an analog bypass circuit for the digital IR cab sim, and can be 100% analog when the cab sim is not engaged.

The Shift Line Twin cabinet simulation (cab sim) is based on the Impulse Response (IR) convolution technology, which provides a realistic and detailed sound, while preserving the character of the power amp, cabinet, and microphone used to record the impulse.

The Twin comes with two impulses recorded from the Fender Twin combo amplifier. The microSD card slot allows users to upload their own cabinet impulses.

DEMO VIDEO:
Check out the awesome detailed demo video on this page in the photos section, many thanks to guitar and effects wizard Brett Kingman.

CONNECTIONS:

• IN is the signal source input.

• THRU is a buffered output for the unprocessed signal split from the IN jack.

• SEND/RETURN is a series effects loop for external processing. The SEND out can also be used as an additional output.

• OUT is the main output designed to connect the preamplifier to a power amplifier (RETURN or POWER AMP IN on combo amplifiers, INPUT on power amplifiers).

• AUX IN is an external audio input (the signal from the AUX IN is only heard through the PHONES output).

• PHONES is a headphones output.

• BALANCED OUT is a balanced output.

• POWER IN is a power supply input. Shift Line's U.S. compatible power supply is included. The power requirements are 12V DC 650mA.

• MICRO SD is a microSD card slot.

Our customers at Reverb gave Shift Line Twin 5 star reviews:

CONTROLS:

• GAIN controls input signal amplification. It can go from a crystal-clear sound all the way to a classic California-style overdrive.

• BASS, MIDDLE, & TREBLE KNOBS constitute a classic 3-band passive EQ with a mild frequency correction effect.

• MASTER controls the volume of the signal coming from the OUT jack.

• VOLUME controls the volume of the signal coming from the PHONES and BALANCED OUT jacks. The MASTER and VOLUME knobs work independently.

• TOP SWITCH controls the signal’s high frequency harmonic content. The “+” position accentuates the highs and the attack. The ”-” position provides a milder sound by cutting the high frequencies. The neutral position does not affect the signal in any way.

• GND SWITCH allows to override “ground loops” that can negatively affect the signal when using XLR connections. In the lower position of the switch, the preamp’s “ground” is connected to the signal receiver’s “ground”. In the middle position, the “grounds” are disconnected. In the upper position, the “grounds” are connected and an additional filter is used to remove interference. The optimal setting of the GND switch is selected by ear: there should be a minimum amount of 50Hz hum and interference.

• CAB SWITCH selects one of the two built-in cabinet impulses recorded from a Fender Twin combo amplifier with two JBL D120F speakers:


  • “A” position selects the impulse recorded by a LOMO 19A19 microphone placed 15cm away from the edge of the speaker’s protective cap.

  • Middle Position, cabinet simulation is disengaged.

  • “B” Position selects the impulse recorded by a Sennheiser e609 microphone placed 25cm away from the center of the speaker.

  When using a microSD card, impulses are loaded from the corresponding folder on the card. The CAB switch affects the signal from the BALANCED OUT and the PHONES OUT but does not affect the signal from the main OUT.

LOADING IMPULSES: Using a microSD card

• Before using a microSD card, make sure it is formatted to the FAT32 filesystem.


• When the memory card is used for the first time, a “Shift_IR” folder is automatically created on it. The folder contains two more folders (“A” and “B”, corresponding to the CAB switch positions) in which the default impulses are stored. To use external impulses, replace the default ones with your own files. The supported impulse format is 24bit 48kHZ WAVE PCM1, uncompressed.


• To restore the default impulse files, insert a blank microSD card into the device. This will create a “Shift_IR” folder containing the default files. If no card is inserted, the built-in impulses are used.


USER MANUAL DOWNLOAD:
Shift Line Twin MkIIIS Manual PDF

SPECIFICATIONS:

• Tube type: 12AX7

• Memory card type: microSD

• IR latency: 1.2ms

• IN: 6.3mm, mono, unbalanced, -20dB, 1MOhm input impedance

• THRU: 6.3mm, mono, unbalanced, -20dB, 1kOhm output impedance

• SEND: 6.3mm, mono, unbalanced, -10dB, 1kOhm output impedance

• RETURN: 6.3mm, mono, unbalanced, -10dB, 1MOhm input impedance

• OUT: 6.3mm, mono, unbalanced, +20dB, 1kOhm output impedance

• BALANCED OUT: XLR, mono, balanced, +10dB, 1kOhm output impedance

• AUX: 3.5mm, stereo, unbalanced, 0dB, 10kOhm input impedance

• PHONES: 3.5mm, stereo, unbalanced, +10dB, 10Ohm output impedance

• POWER SUPPLY: Shift Line's U.S. compatible power supply is included. 12V DC 650mA, negative tip, 2.1/5.5mm diameter. Phantom power of the balanced line (+48V) or battery power are insufficient for the preamp to operate on. If phantom power is turned on, it will not damage the device. Use the included power supply, or a regulated power supply only.

• Dimensions: (LxWxH) 122x102x55mm (4.8x4x2.2”)

• Unit Weight: 480g (1.06lb)

• Power Supply Weight: 120g (0.26lb)

INCLUDED IN THE BOX:

• Shift Line Twin MkIIIS
• Power Supply: 12V DC 1000mA with 4 changeable plugs (U.S. compatible plug is included)

• User Manual


WARRANTY:
Comes with Shift Line's 3 year warranty for all electronic components, and 1 year for components subject to mechanical impact (potentiometers, footswitches, switches, jacks).

SHIPPING:
Ships fast! Usually same day, with Free UPS Shipping in U.S. with tracking (1 biz day processing, 1-3 biz days transit time usually). 1 and 2-Day guaranteed shipping is also available.

Our added value, when purchased here at coolguitarshop.us:

• Best Total Price: $489 is your absolute final/total here, with Shopify Secure Checkout.

• Tax & Duty Free!
• Fast Free Shipping in U.S.
• No Risk: Try it on your own rig for 30 days. Don't love it? Return it for a full refund... no hassles, no costs. (We'll send you a prepaid return label link.)
• Rock-solid customer service, 365 days a year.

Get that warm, tube-based preamp tone, along with the Fender Twin combo amp cabinet simulation, with the Shift Line Twin MkIIIS.
